Our CE Certified Q37 Hook Shot Blasting Machine Has Over 20 Years of Manufacturing Experience with Global After-sales Service
| Item | Unit | Q376 | Q378 | Q3710 | Q3720 | Q3730 | Q3750 |
| Maximum weight of cleaning | kg | 500 | 1000 | 1000 | 2000 | 3000 | 5000 |
| Abrasive flow rate | kg/min | 2*125 | 2*180 | 2*180 | 3*250 | 3*250 | 4*250 |
| Ventilation on capacity | m³/h | 5000 | 5000 | 5000 | 9000 | 11000 | 14000 |
| Lifting amount of elevating conveyor | t/h | 24 | 30 | 30 | 45 | 45 | 60 |
| Separating amount of separator | t/h | 24 | 30 | 30 | 45 | 45 | 60 |
| Max overall dimensions of suspender | mm | 800*1000 | 1000*1500 | 1200*1700 | 1400*2200 | 1600*2300 | 1800*2500 |

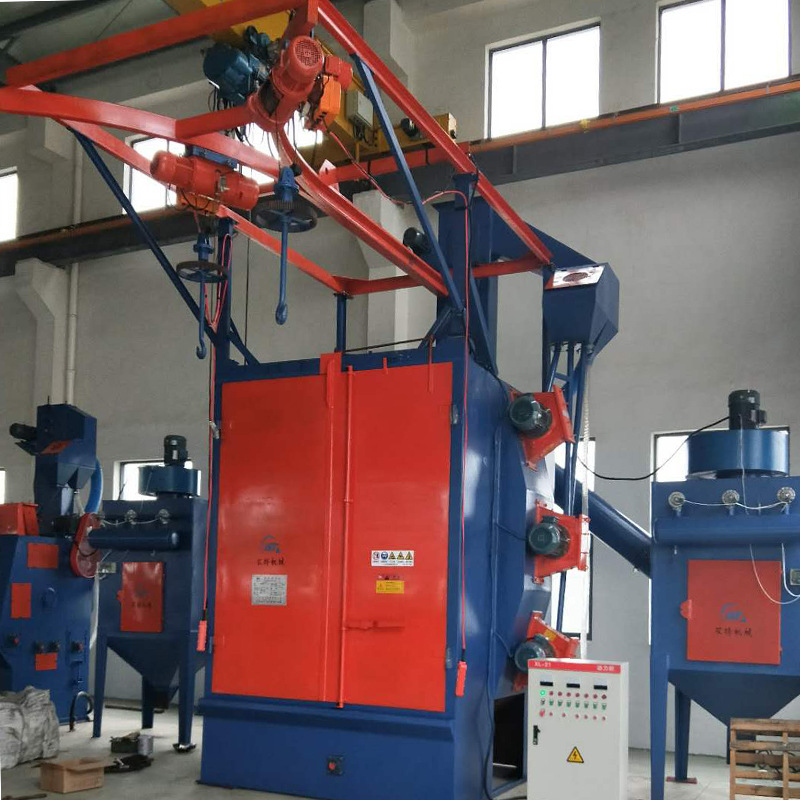

Spinner Hanger Hook System
Spinner Hanger Hook: To hang work pieces or tooling
Driving Motor: To drive spinner hanger hooks to rotate&move along rails into or out.
Overhead Rails: T shaped is for one hook and Y shaped is for two hooks
Rotating & Blasting Time: 3-5 minutes according to different work pieces
Blasting Chamber

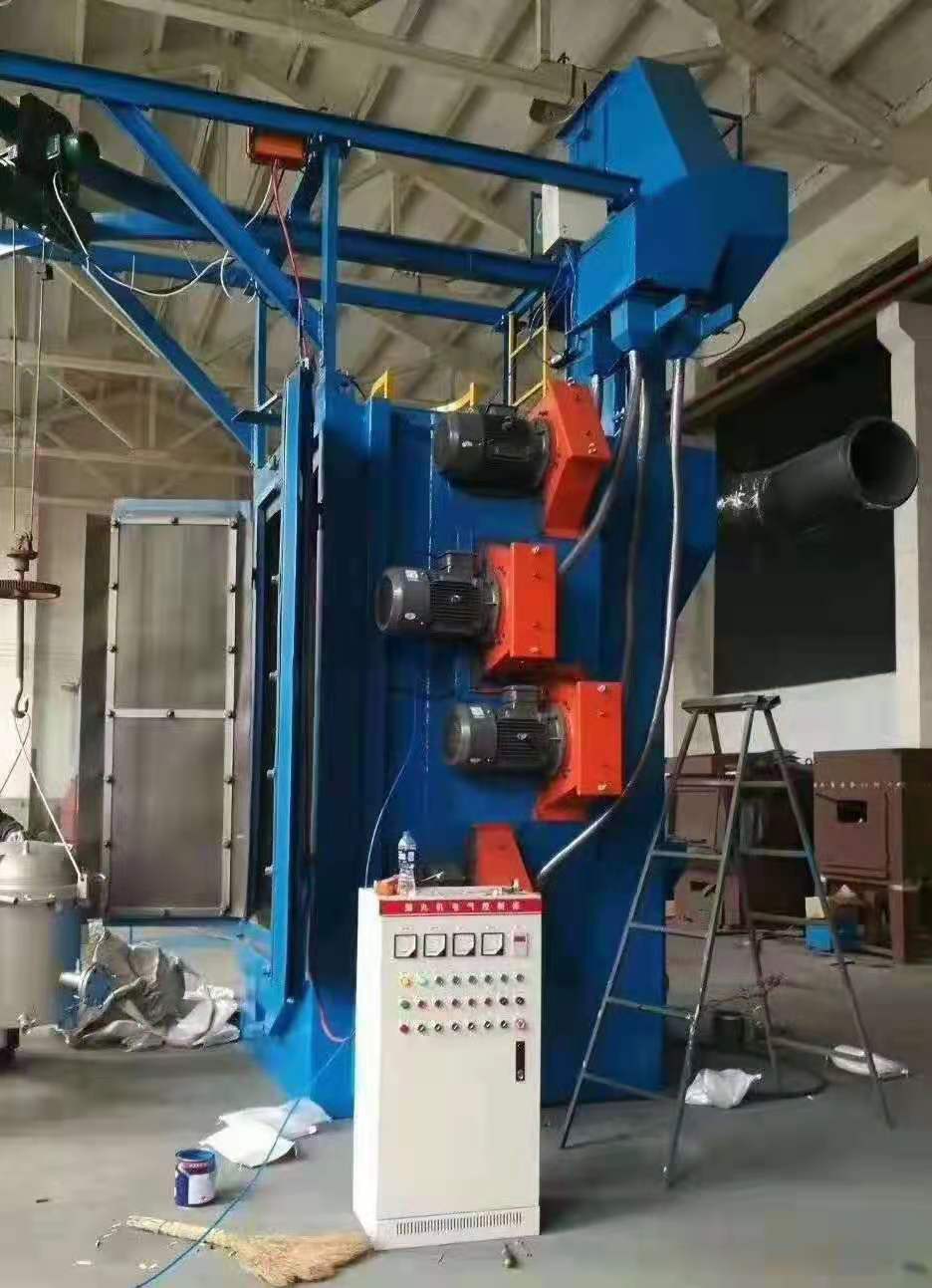

Blasting Wheels: Mounted on left side wall of blasting chamber. Angle will be customized according to work pieces.
Hot Area: Right inside of blasting chamber is called hot area protected by Mn alloy liners.
Doors: Manual or pneumatic type are available.
Electric Control System
Model: Automatic ( manual type is available).
Control Unit: PLC.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel.
The hook type shot blasting machine is widely used in the following fields:Casting and forging industry, including castings such as automotive engine blocks, gear housings and hardware fittings.In the engineering machinery and heavy equipment industry, it is applied to excavator buckets, crane booms and steel structural components.The hanging design of this metal surface cleaning machine can easily lift these workpieces and effectively remove accumulated rust, paint and dirt through shot blasting.
In the automotive parts manufacturing industry, it is used for automotive components that require high surface quality and fatigue resistance, such as chassis parts, brake discs and wheel hubs.The hook type shot blasting machine can not only realize surface cleaning, but also strengthen product performance.By bombarding the metal surface with high-speed shots, the machine forms a uniform compressive stress layer on the surface, thereby improving the wear resistance and service life of automotive parts.
